Kuvaus

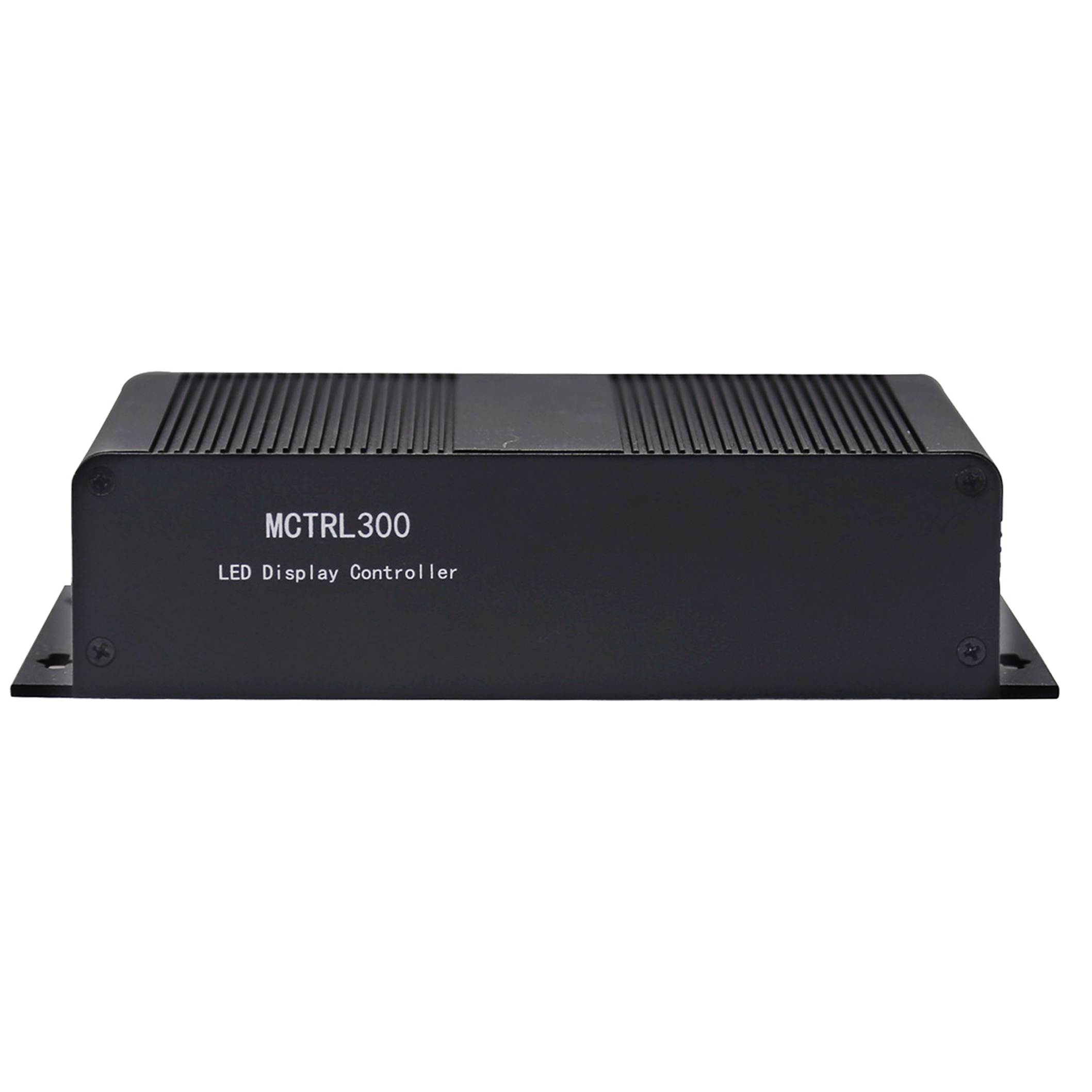

NovaStar MCTRL300 on NovaStarin Standard Line -sarjan pienin LED-ohjain, jonka avulla LED-näytöt voidaan asentaa hyvin lyhyessä ajassa. Lähetyskortti on rakennettu vakaaseen metallikoteloon ja toimitetaan DVI-sisääntulolla. Lisäksi ohjaimessa on valoanturiliitäntä, johon voidaan liittää NovaStar NS060 (101612) automaattista kirkkauden valvontaa varten.
NovaStar MCTRL300 on ihanteellinen pienille ja keskikokoisille kiinteille LED-näytöille!
The NovaStar MCTRL300 is the smallest LED controller from NovaStar’s Standard Line that enables LED displays to be set up within a very short time. The sending card is built into a stable metal housing and is delivered with a DVI input. In addition, the controller has a light sensor connection to which the NovaStar NS060 (101612) can be connected for automatic brightness monitoring.
The NovaStar MCTRL300 is ideal for small to medium-sized fixed LED displays!
MCTRL300 is NovaStar’s independent control card from the M3 Series, and supports audio and video input. The M3 undertakes encoding and data processing, sending the audio and video to the display. A single card supports maximum loading capacity of 2048×668@60Hz. It communicates with PC via USB port for convenience.
- DVI video input
- Audio transmission
- Dual-Ethernet output, with dual-Ethernet cable hot backup and multiple controller hot backup
- USB port control, for cascading and control of multiple units
1.3 million pixel loading capacity, with resolutions of 1280×1024@60Hz, 1024×1200@60Hz, 1600×848@60Hz, 1920×712@69Hz, 2048×668@60Hz and Maximum height: 3840; Maximum height:3840
1 light sensor interface, adjust the screen brightness automatically
Independent power supply
Certifications: CE, RoHS, EAC, FCC, IC
- 1 × DVI input
- 1 × audio input
- 1 × type-B USB control port
- UART control ports to cascade devices for uniform control.
- Dual Ethernet outputs.
- Supports the new generation of NovaStar calibration technology, which is fast and efficient.
- 1 × light sensor connector.
- Supports resolutions up to 2048×668@60Hz and downward compatibility.
- Supports a variety of video formats.
