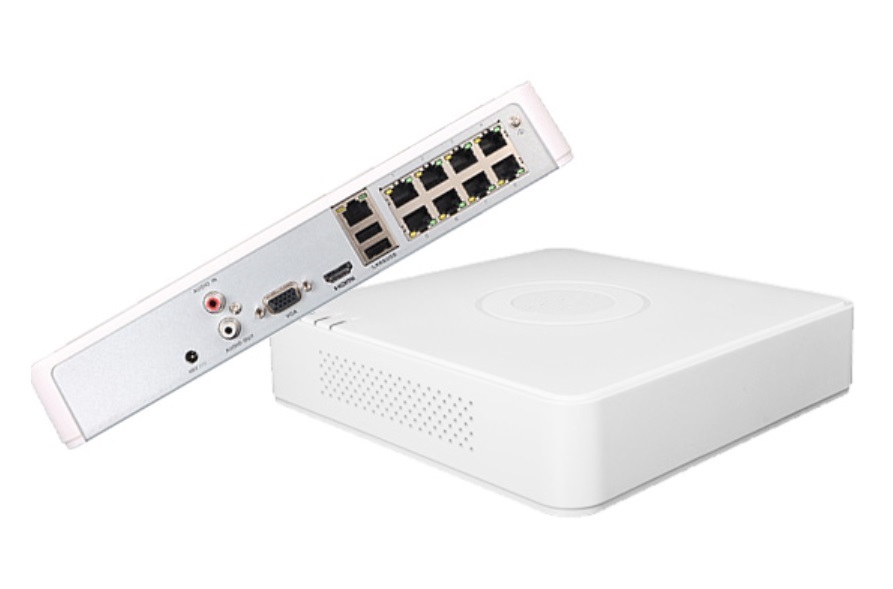

- DS-7104/7108/7116NI-SN/P
- Embedded Mini Plug & Play NVR
- • Third-party network cameras supported
• Up to 2 Megapixels resolution recording
• HDMI and VGA output at up to 1920×1080P resolution
• HDD quota and group management
• 4/8 independent PoE network interfaces are provide
| Video/Audio Input |
| Two-way audio input: |
|
1-ch, RCA (2.0 Vp-p, 1kΩ) |
| IP video input: |
|
16-ch |
| Network |
| Remote connection: |
|
128 |
| Incoming bandwidth: |
|
100Mbps |
| Outgoing bandwidth: |
|
40Mbps |
| Video/Audio Output |
| HDMI/VGA output: |
|
1-ch, resolution:
1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz |
| Audio Output: |
|
1-ch, RCA (Linear, 1kΩ) |
| Decoding |
| Capability: |
|
4-ch@720P, 2-ch@1080P |
| Live view / Playback: |
|
1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Hard Disk |
| SATA: |
|
1 SATA interface for 1 HDD |
| Capacity: |
|
Up to 4TB for each disk |
| External Interface |
| Network Interface: |
|
1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| USB Interface: |
|
2, USB2.0 |
| POE |
| Supported Standard: |
|
AF |
| Interface: |
|
8 independent 10 /100 Mbps PoE Ethernet interfaces |
| Max. Power: |
|
120W |
| General |
| Power Supply: |
|
48V DC |
| Consumption(without hard disk and POE): |
|
≤ 15 W |
| Working Temperature: |
|
-10 oC ~ +55 oC (+14 oF~ + 131 oF) |
| Working Humidity: |
|
10 % ~ 90 % |
| Chassis: |
|
1U chassis |
| Dimensions: |
|
285 × 210 × 45 mm |
| Weight(without HDD): |
|
≤ 1 Kg |
