Kuvaus

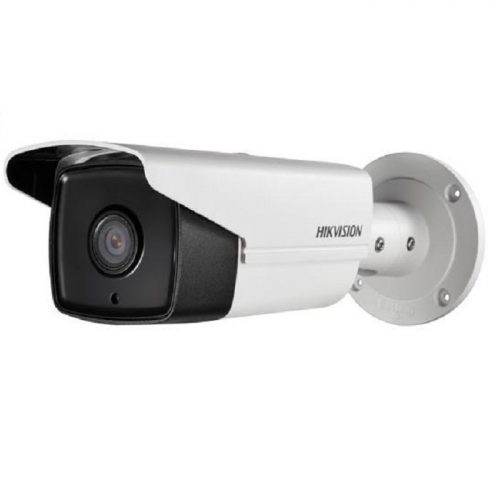

DS-2CD4A26FWD-IZ(H)(S)
2MP Low Light Smart Camera
-
- 1/1.8” Progressive Scan CMOS
- Full HD1080p video
- Up to 60fps frame rate
- Ultra-low light
- Slow shutter
- 120dB WDR
- 3D DNR
- Up to 50m IR range
- Motorized lens with Smart Focus
- -H: built-in heater
- -S: audio/alarm IO
- Support 128G on-board storage
- DC12V/PoE
- IP67
-
Camera Image Sensor: 1/1.8″ Progressive Scan CMOS Signal System: PAL/NTSC Min. Illumination: 0.002 Lux @ (F1.2, AGC ON), 0.0027 Lux @ (F1.4, AGC ON), 0 Lux with IR Shutter time: 1s ~ 1/100,000s Slow shutter: Support Auto Iris: DC drive Day& Night: IR cut filter with auto switch Wide Dynamic Range: 120 dB Compression Standard Video Compression: H.264+/H.264/MPEG4/MJPEG H.264 code profile: Baseline Profile / Main Profile / High Profile Video bit rate: 32Kbps~16Mbps Audio Compression: G.711/G.722.1/G.726/MP2L2 Audio bit rate: 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) Triple Streams: Yes Image Max. Image Resolution: 1920 x 1080 Frame Rate: 50Hz:50fps(1920×1080), 50fps(1280×960), 50fps(1280×720)
60Hz:60fps(1920×1080), 60fps(1280×960), 60fps(1280×720)Third Stream: Independent with Main Stream and Sub Stream, up to
50Hz: 25fps (1920 × 1080)
60Hz: 30fps (1920 × 1080)Image Enhancement: BLC/3D DNR/ROI/Defog/EIS Image Settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser Distortion Correction: Support Target Cropping: Support Picture Overlay: LOGO picture can be overlaid on video with 128×128 24bit bmp format Day/Night Switch: Auto/Schedule/Triggered by Alarm In Network Network Storage: NAS (Support NFS,SMB/CIFS), ANR Alarm Trigger: Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour General Function: User Authentication, Watermark, IP address filtering System Compatibility: ONVIF (Profile S, Profile G),ISAPI Interface Audio: 1-ch 3.5 mm audio in (Mic in/Line in)/out interface Audio Input: 1-ch 3.5 mm audio interface, MIC IN/LINE IN Audio Output: 1-ch 3.5mm audio interface Communication Interface: 1 RJ45 10M / 100M Ethernet interface Alarm: 1 input, 1 output (up to DC24V 1A or AC110V 500mA ) Alarm Input: 1 Alarm Output: 1 Video Input: 1 RJ12 interface Video Output: 1Vp-p composite output (75 Ω/BNC) (-S model) On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB Reset Button: Yes Audio Environment Noise Filtering: Support Audio I/O: Support dual audio track, stereo Audio Sampling Rate: 16kHz / 32kHz / 44.1kHz / 48kHz Smart Feature-set Behavior Analysis: Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal Line Crossing Detection: Cross a pre-defined virtual line Region Entrance: Enter a pre-defined virtual region from the outside place Region Exiting: Exit from a pre-defined virtual region Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials Object Removal: Objects removed from the pre-defined region, such as the exhibits on display. Exception Detections: Scene change detection, Sudden audio increase/decrease detection, Audio loss detection, Defocus detection Recognition: Face detection recognition Statistics: Object Counting (Entrance and Exit object number is accounted and showed on screen in real time) General Operating Conditions: -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing), -H: -40 °C – 60 °C Power Supply: 12 VDC ± 10%, PoE (802.3af) Power Consumption: Max. 20.7 W Weather Proof: IP67 Dimensions: 100×103.9×311.8 mm (3.94” × 4.09” × 12.28”) Weight: 2000 g (4.41 lbs)
