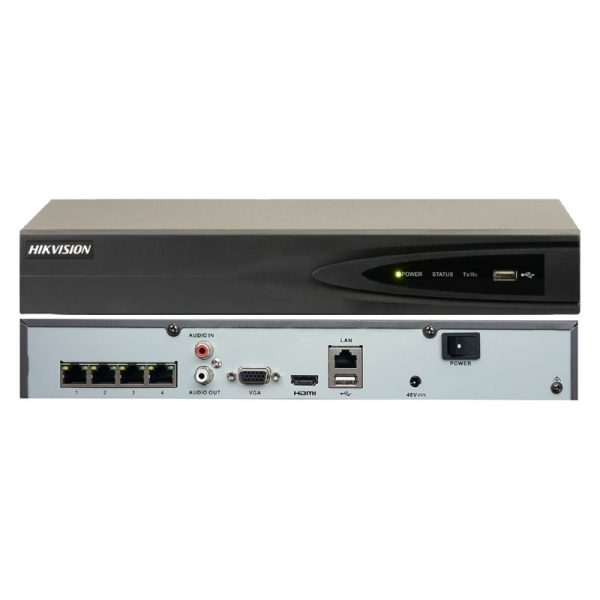

DS-7604NI-K1/4PEmbedded Plug & Play 4K NVR
• Third-party network cameras supported
• Up to 8 Megapixels resolution recording
• Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840×2160)resolution
• 4-ch network cameras can be connected with 40M/60M/80M incoming bandwidth
• Support dual-os to ensure high reliablility of system running
• Plug & Play with up to 4 independent PoE network interfaces
•Support various VCA detection alarm and VCA search
•Support H.265/H.264/MPEG4 video formats
| Video/Audio Output |
| HDMI Output: |
|
1-ch, resolution:4K (3840 × 2160)/30Hz,1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 ×1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz. |
| Recording Resolution: |
|
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Output: |
|
1-ch, RCA (Linear, 1kΩ) |
| VGA Output: |
|
1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Decoding |
| Capability: |
|
4-ch@1080P |
| Live view / Playback: |
|
8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Hard Disk |
| SATA: |
|
1 SATA interface for 1 HDD |
| Capacity: |
|
Up to 6TB capacity for each HDD |
| External Interface |
| Network Interface: |
|
1 RJ-45 10 / 100 Mbps selfadaptive
Ethernet interface |
| USB Interface: |
|
2, USB2.0 |
| POE |
| Interface: |
|
4 independent 10 /100 Mbps PoE
Ethernet interfaces |
| General |
| Power Supply: |
|
48 VDC |
| Consumption(without hard disk and POE): |
|
≤ 10 W |
| Working Temperature: |
|
-10 oC ~ +55 oC (+14 oF~ + 131 oF) |
| Working Humidity: |
|
10 % ~ 90 % |
| Chassis: |
|
315 mm chassis |
| Dimensions: |
|
315 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″) |
| Weight(without HDD): |
|
≤ 1 kg (2.2 lb) |
